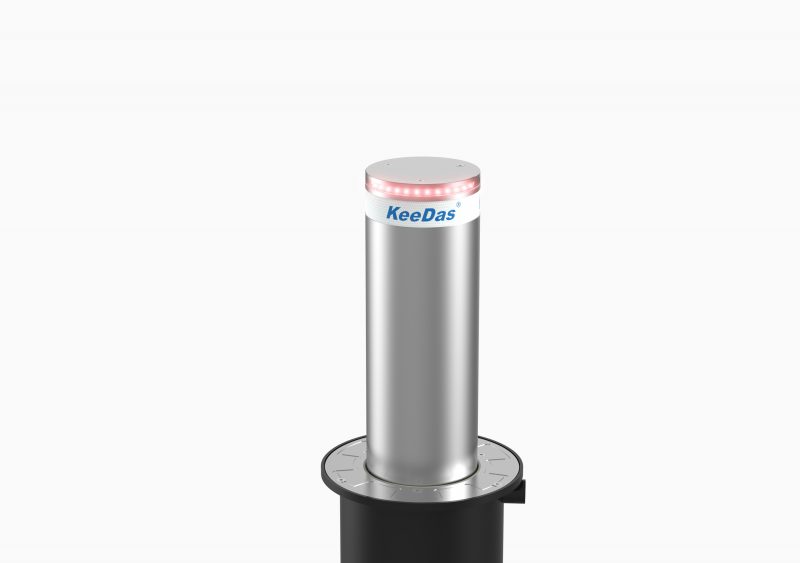

HLM-H220

Category:
This series is high-security automatic hydraulic anti-terror bollards.
The whole product combines the experience, skill, and reliable technology from KeeDas( Italian R&D). It is designed for large traffic flow and high-security requirements site’s vehicles access control and it can be widely used in banks, government agencies, research and development centers, nuclear power plants, military bases, sensitive areas, and other places of high-security requirements.
A buried installation will not compromise the original architectural style. The specially designed all-in-one hydraulic unit ensures the stability and minimum energy consumption of the equipment under high-intensity working conditions and also followed WGEPC.
Impact resistance capacity K4 level and design for high-frequency usage requirements.
An elegant look & delicate, It is the best choice for high-security vehicle access control solutions.
All series of products have passed the CE certification.



Technical Specifications
Moving cylinder material Stainless steel 304
Moving cylinder nominal diameter 220mm
Moving cylinder height 600mm
Moving cylinder thickness 6mm/8mm/10mm/12mm
Crown & cover plate Stainless steel 304 ( Thickness 10 mm )
Metallic pit thickness 8mm (Option: metallic pit with counter-frame)
Impact resistance class 700000J
Reflecting adhesive strip  White reflecting adhesive strip
Power supply 220V
Power consumption 300W
Rising speed 3-5s  (adjustable)
Lowering speed 2s-4s (adjustable)
Operating frequency 70%
Load capacity 260kg
Manual emergency lowering Manual release button
Operating temperature -30℃ to + 70℃
Static-pressure strength 30T
Protection class: IP68
