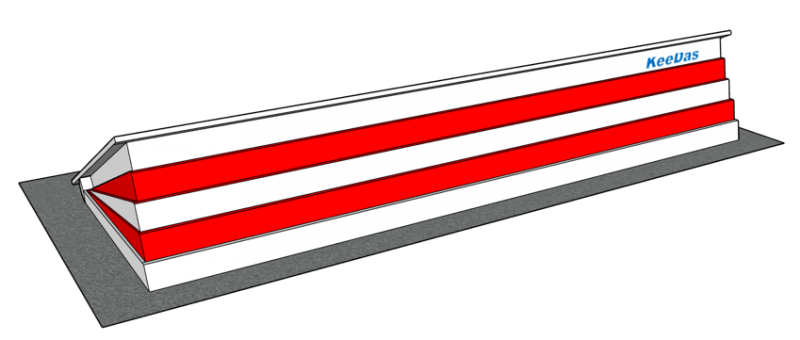

RB-S2 is a shallow mount road blocker, especially for limiting the depth of the basement compartment.
High technical, hydraulic drive, high speed, high-frequency use, breakout resistance over K4.
It is the shallowest pre-buried equipment in the road blocker with K-class resistance. It is very suitable for commercial buildings.
Highlights
- Road blocker depth only 300mm
- K4 breakout resistance
- Metal skirt (white/red)
- 3M reflecting strip
- Anti-corrosion treatment
- S235JR normal steel with anti-slip painting
- The blocker can be lowering by manual release when power lost
- Control unit support wall mounting
- Support traffic light (green-red)
| Technical Specification | |
| Road blocker height (from ground level) | 500mm |
| Road blocker width (moving platform) | 2m / 3m / 4m / 5m / 6m |
| Road blocker depth | 300mm |
| Movement principle | Hydraulic |
| Rising speed | 3 ~ 5s |
| Lowering speed | 3 ~ 5s |
| Emergency lowering | Manual release |
| Moving platform finish | S235JR normal steel with anti-slip painting |
| Class of load | U.N.I. D400 |
| Power | 230VAC (+/- 10%) – 50/60HZ |
| Hydraulic pump | Built-in the control unit |
| Protection class | IP67 |
| Type of use | Intensive |
| Reflecting adhesive strip | Standard |
| Breakout resistance | 700.000J（K4） |
| Operating temperature | -40℃~ +70℃ |
| Connection line to control unit | Standard 10m （Max 30m） |
